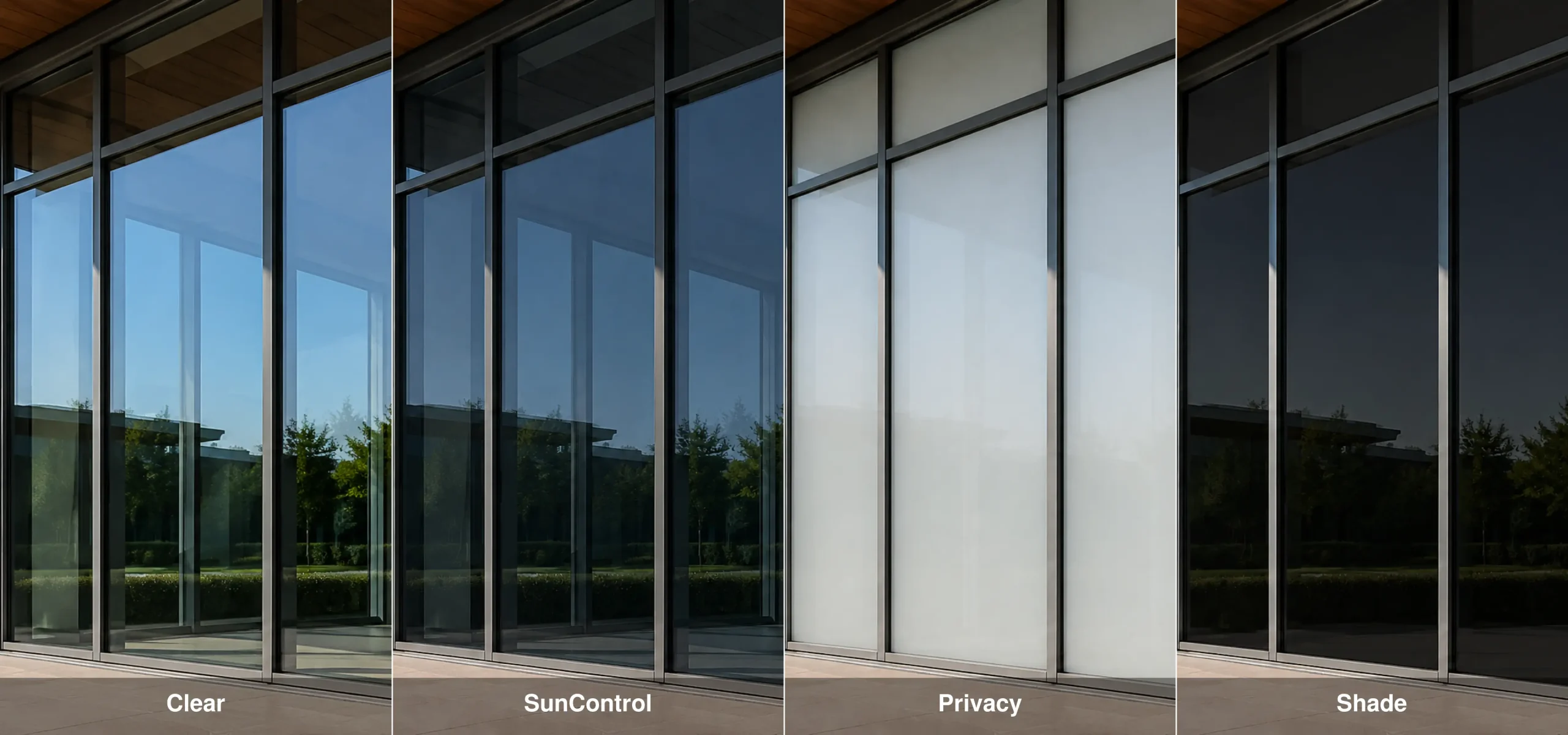

3 Stage Dynamic Glazing
| Product Description | |
|---|---|
| Name | Huee (Dynamic shading & opaque control) |

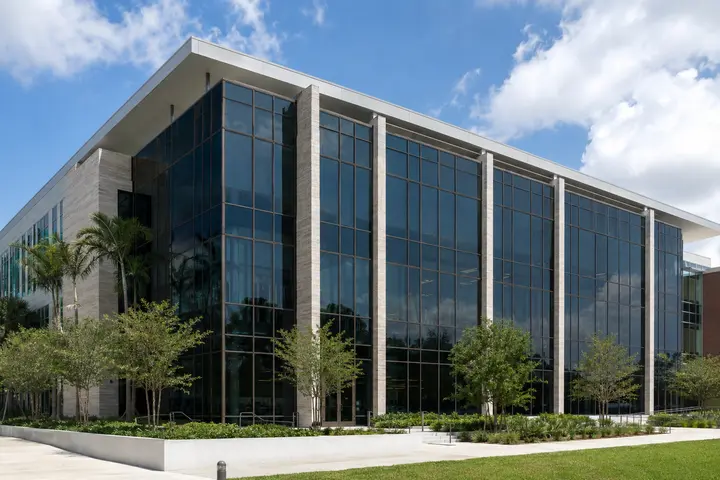

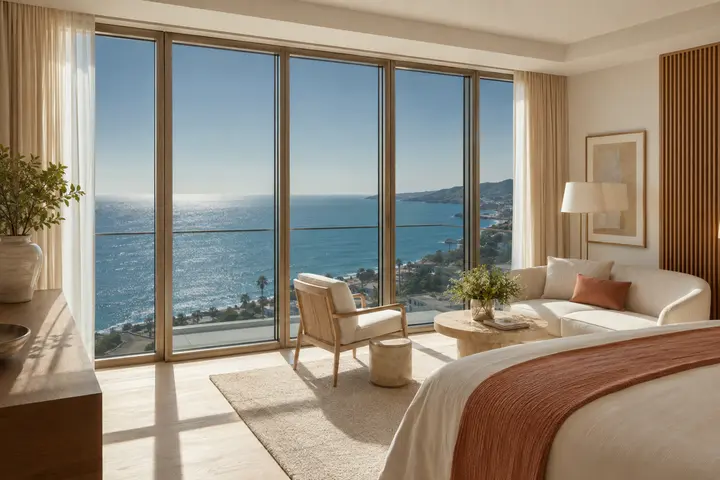

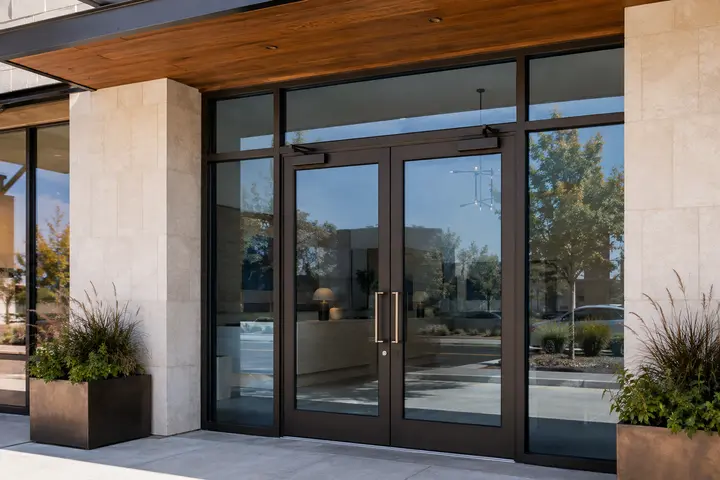

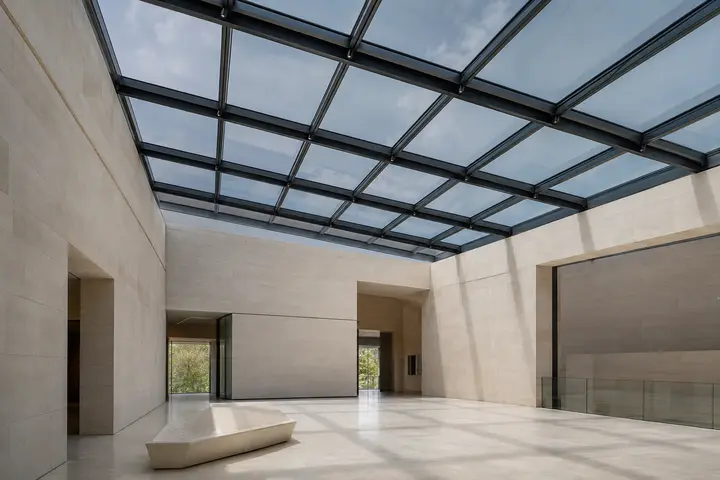

| Application | Architectural roofs, facades, curtain walls, doors/windows |
| Operating Voltage | AC 60–110V |
| Dimensions | Max width: 1.5 m (5 ft) |
| Low Haze (Clear Mode) | 4% |
| Visible Transmittance (Clear Mode) | 63% |
| UV Transmittance (Opaque Mode) | 99–100% |
| IR Transmittance (Opaque Mode) | 80% |
| View Angle | ~165° |
| Power Consumption | 5.7 W/sqm |
| Switching Time | (ON) < 1 s; (OFF) < 15 s |
| Lifetime | > 100,000 hours (20 years) |
| Operating Temperature | –20 °C to 80 °C |
| Dimmer Function | Yes |
| Projection Screen | Yes |
| Warranty | 10 years |
