HUEE Dynamic Glazing
HUEE combines EP and PDLC technologies to create four selectable glass states: Clear, SunControl, Privacy, and Shade. One system manages daylight, solar heat, glare, visual privacy, and blackout without secondary window coverings.
Key Benefits
Control Daylight, Comfort, and Privacy in One System
Heat & Glare Control
More comfort in direct sunlight
Adjustable Daylight
Adapt daylight as conditions change
On-Demand Privacy
Instant, seamless control
Blackout Control
Block virtually all visible light

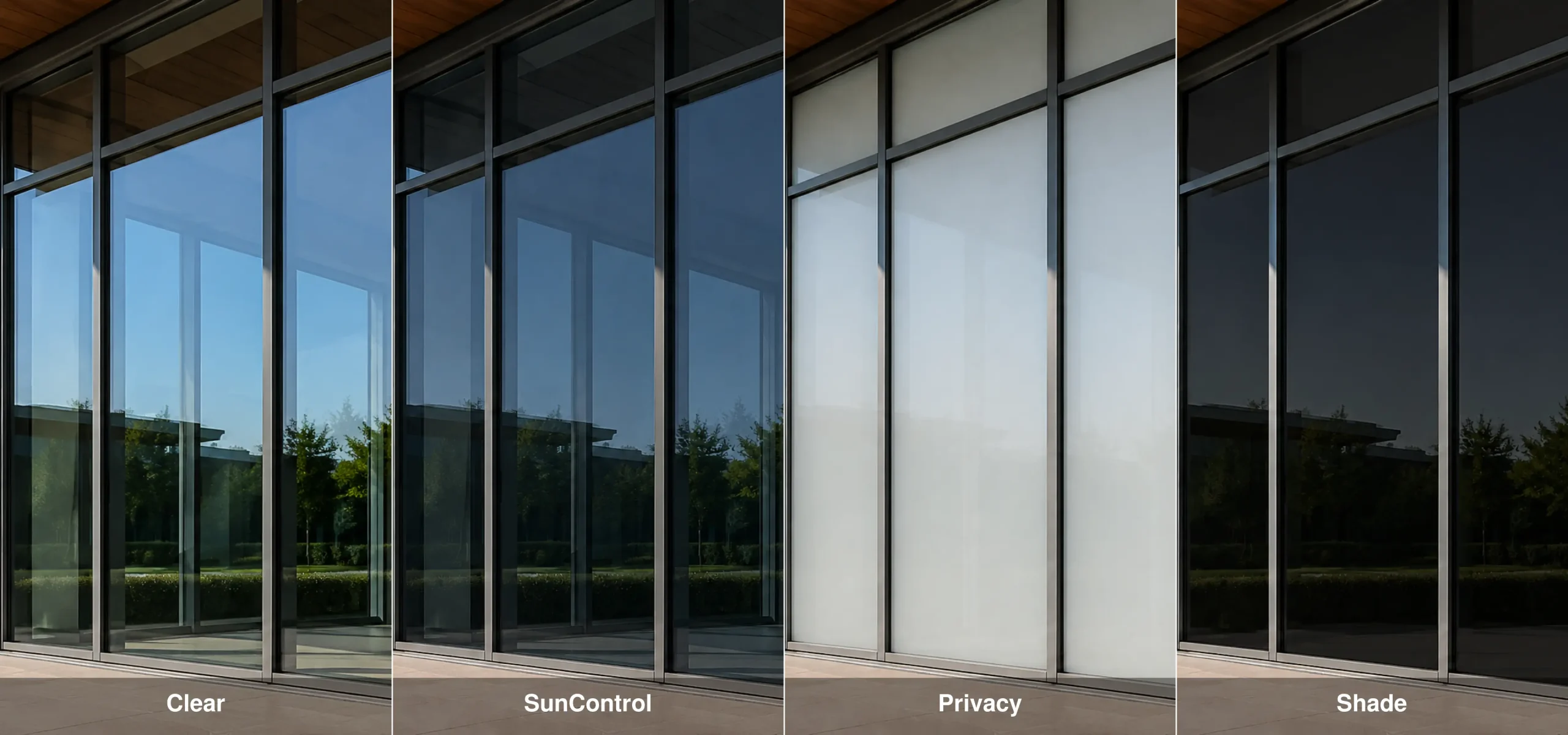

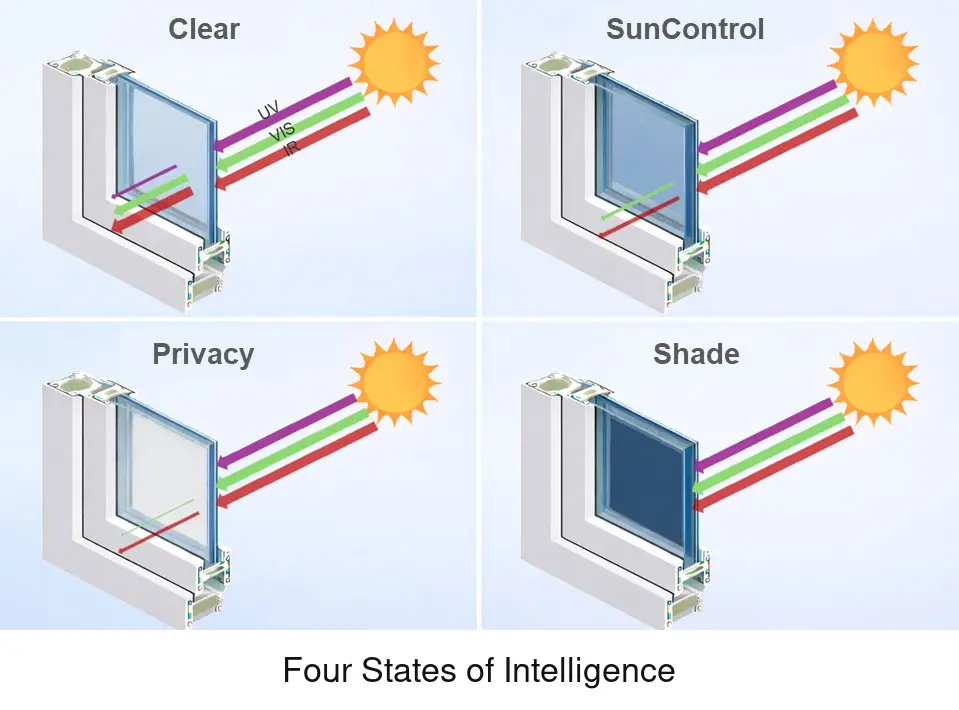

Four Modes of Dynamic Glazing

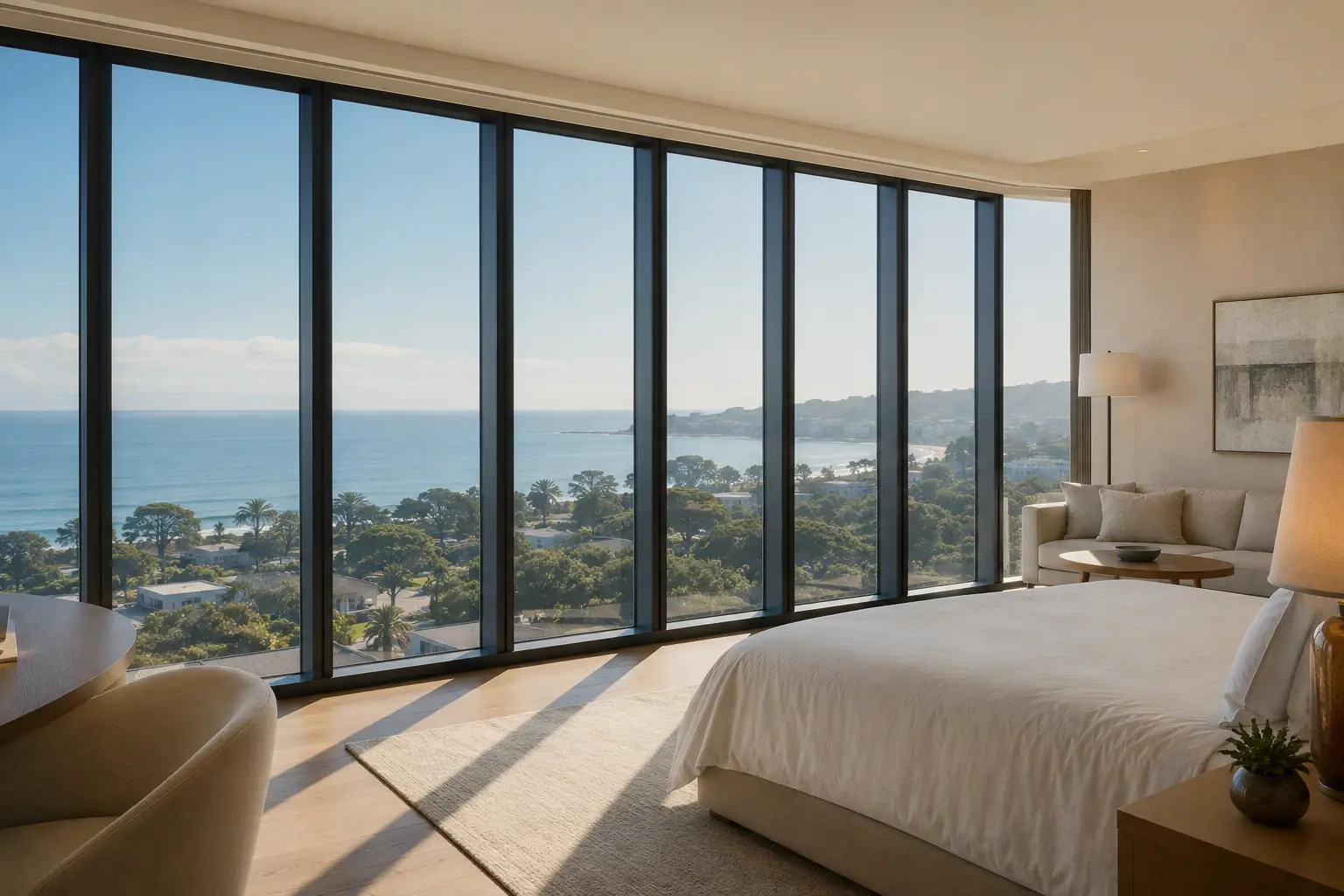

Clear
Daylight and open views
VLT: 66%
IR Blocking: 30%
SHGC: 0.60

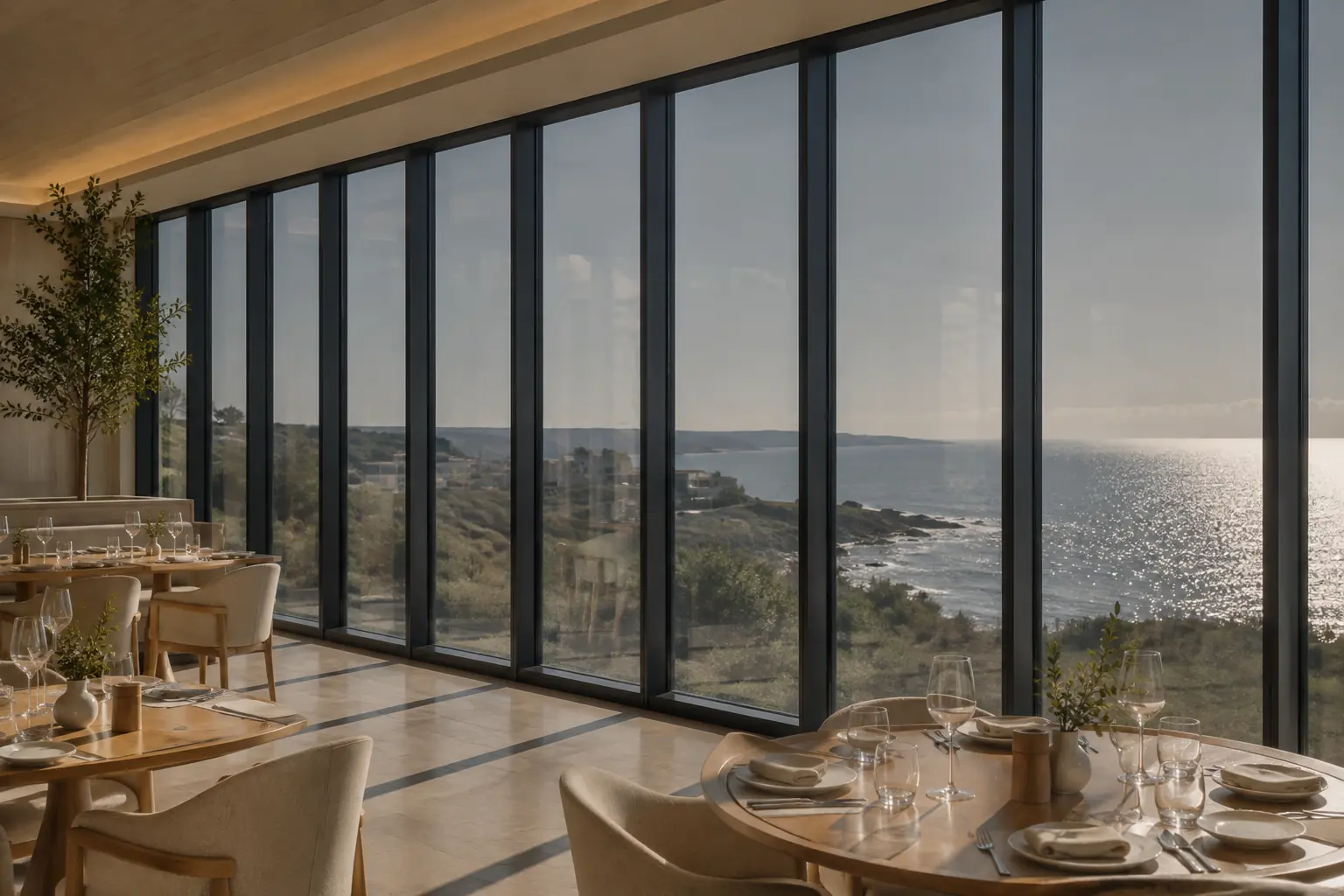

SunControl
Heat and glare reduction
VLT: 2%
IR Blocking: 66%
SHGC: 0.35

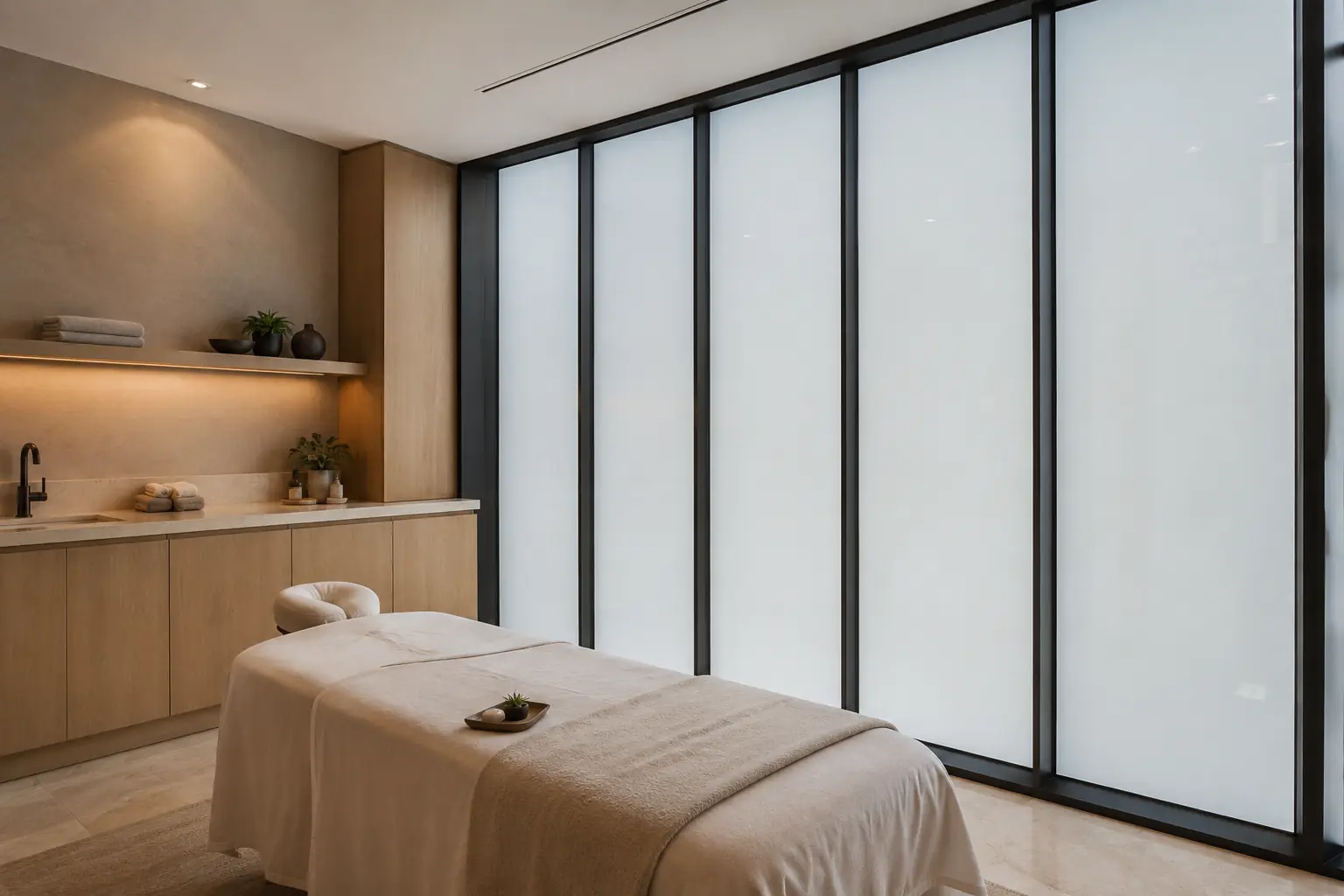

Privacy
Privacy with diffused light
VLT: 5%
IR Blocking: 80%
SHGC: 0.30

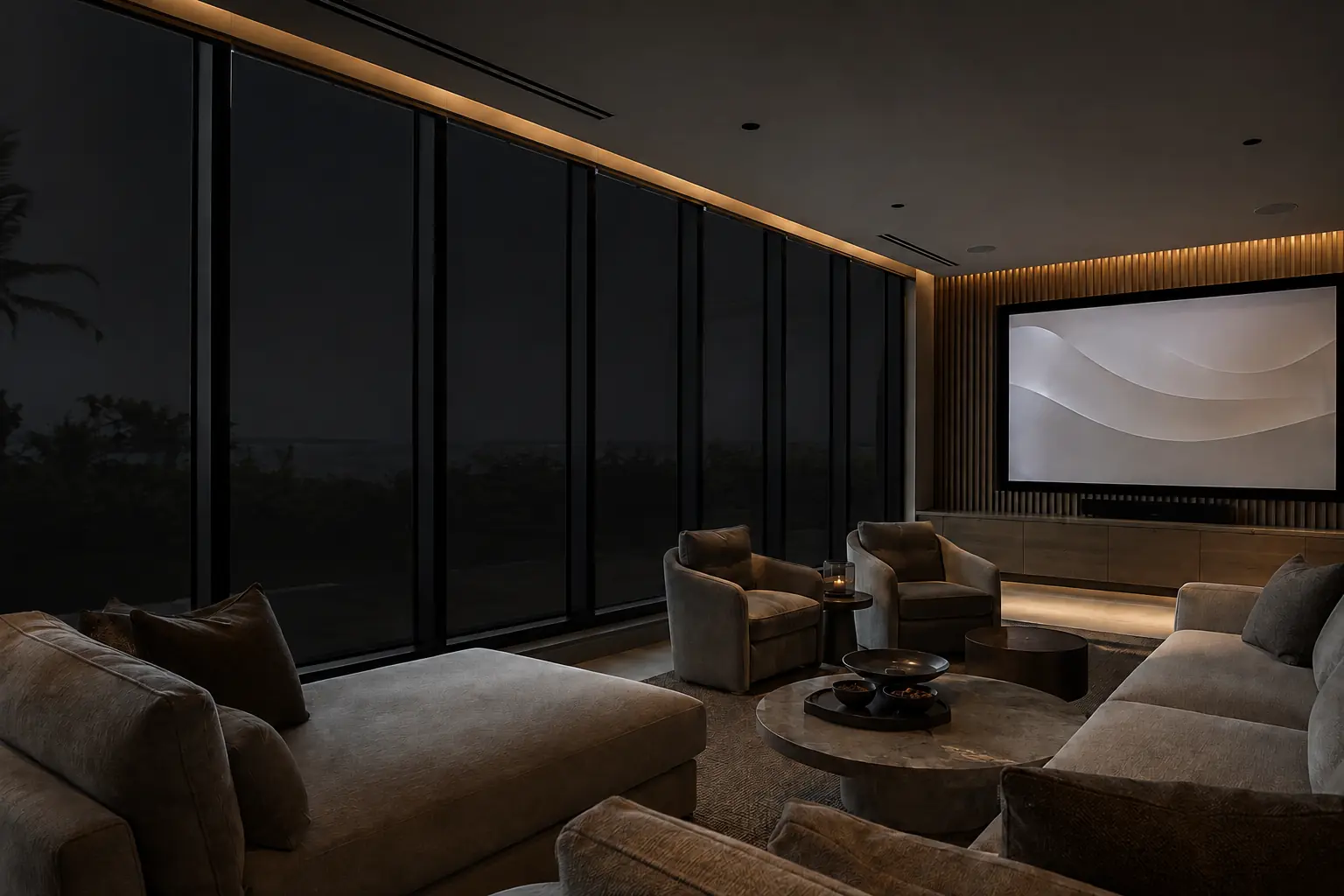

Shade
Blackout and maximum solar control
VLT: 0%
IR Blocking: 90%
SHGC: 0.13
99–100% UV blocking across all four modes
How HUEE Dynamic Glazing Works
HUEE independently controls an EP solar-control film and a PDLC privacy film within the glazing system. Their combined states create four glazing modes.
EP Film: Tint and solar control
PDLC Film: Clear and privacy control

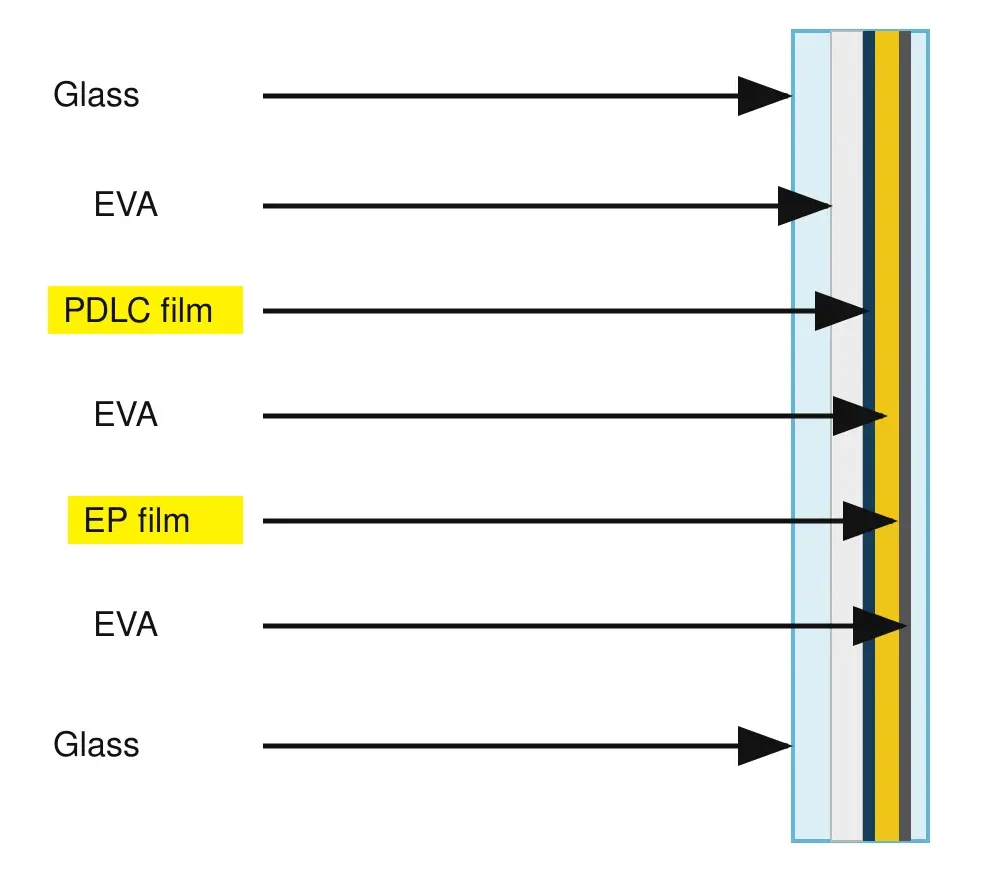

Interior Laminated HUEE
- Clear or low-iron safety glass
- Slim laminated construction
- Doors, partitions, and interior openings
- Custom shapes, holes, and notches
- Optional laser-etched patterns

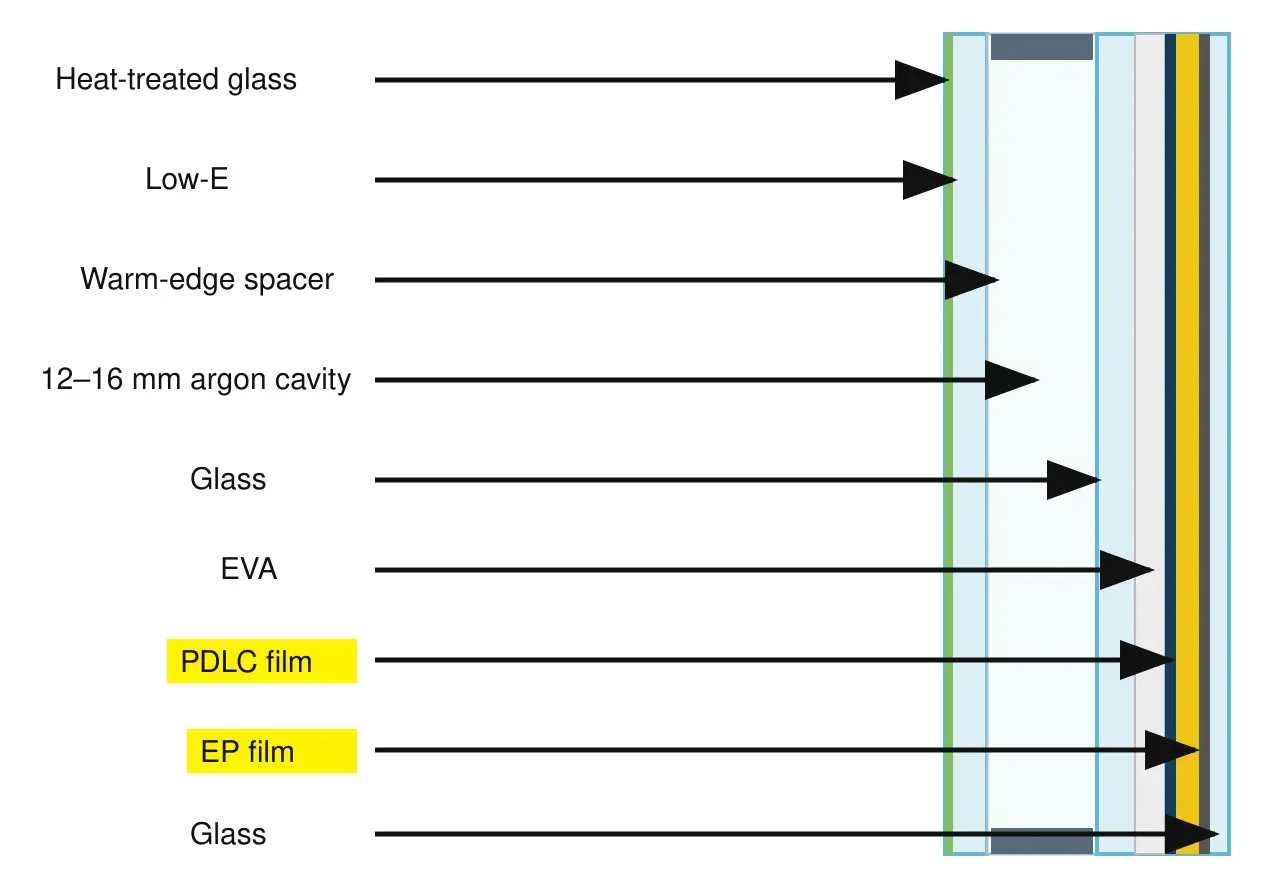

Exterior HUEE IGU
- Heat-treated exterior lite
- Low-E coating
- HUEE dynamic layer
- 12-16 mm argon-filled cavity
- Warm-edge spacer
- Clear or low-iron inboard safety lite
Controls & Integration
Simple to Control. Ready to Integrate.
Wall Presets
Four modes with one-touch selection.
Zone Control
Operate individual panels or groups.
Schedules & Automation
Coordinate mode changes with programmed schedules or supported BMS inputs.
App & BMS Integration
Connect through supported app and BMS interfaces.
| Operating Voltage | Power Consumption | Switching time |
|---|---|---|
| 60-110V AC | ~ 5.7 W/m² | 10 ms–15 s |
Physical controls and manual override remain available without Wi-Fi or app access.
Applications
Designed for More Than One Space

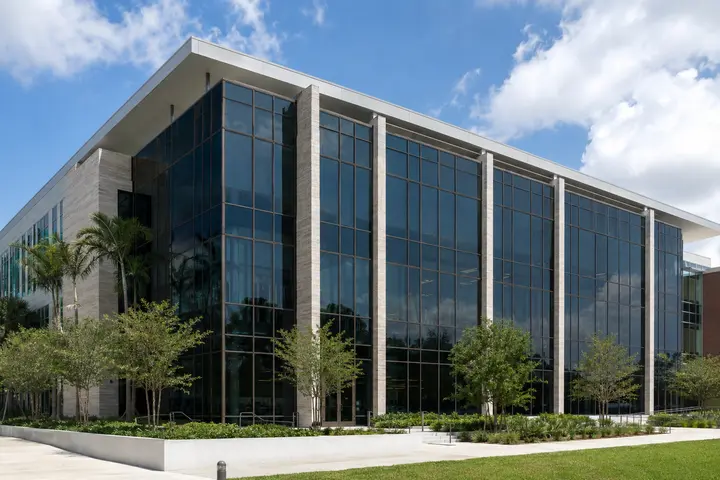

Facades & Curtain Walls

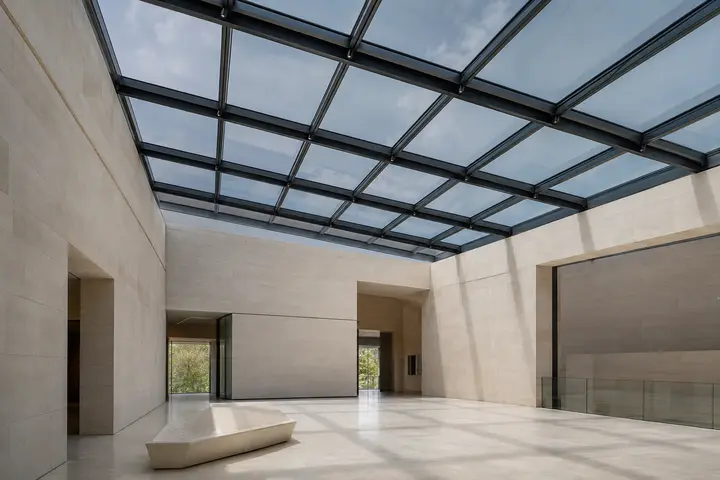

Architectural Roofs

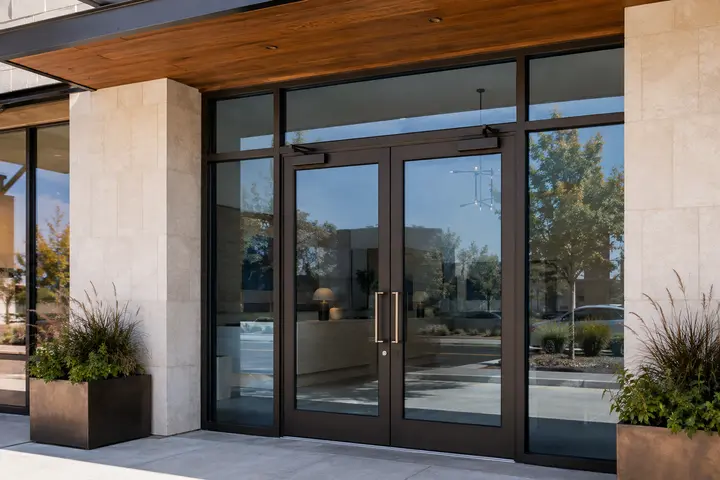

Windows & Glazed Doors

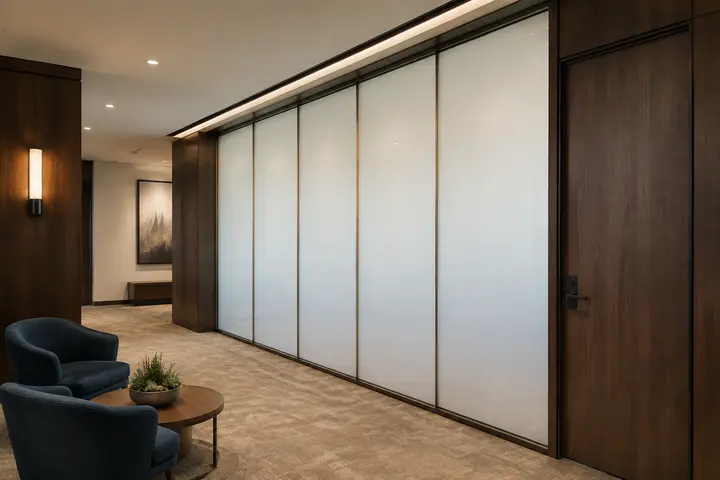

Interior Partitions

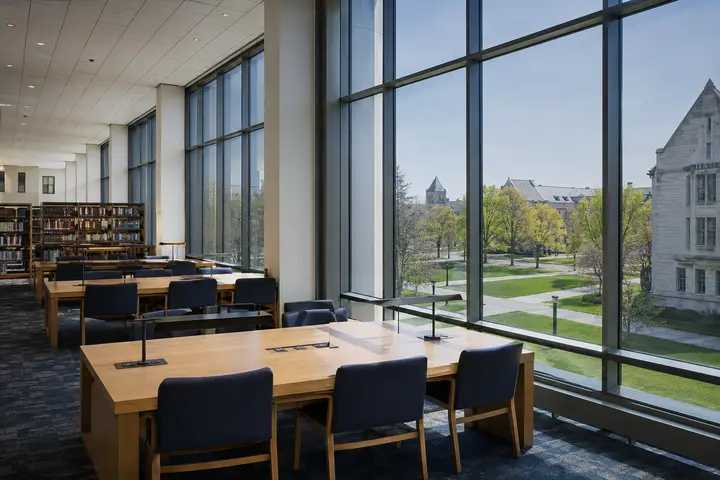

Commercial & Institutional

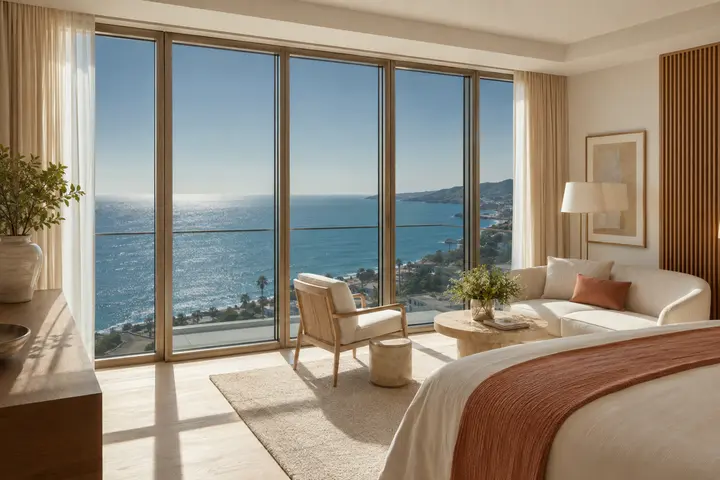

Hospitality & Residential
Support from Specification Through Installation
PGS helps project teams align the glass construction, panel sizes, wiring, transformers, controls, installation, and commissioning.
HUEE Product Resources
Product Data Sheet - PDF
Performance, configurations, and electrical specifications.
Frequently Asked Questions
How is HUEE different from standard switchable privacy glass?
Standard switchable glass typically changes between clear and private. HUEE adds SunControl and Shade modes for a broader range of daylight, heat, glare, and privacy control.
Does HUEE provide blackout?
Yes. Shade mode provides total blackout privacy at 0% visible-light transmittance.
Can HUEE be used outside?
Yes. HUEE can be configured as an exterior insulating glass unit for compatible exterior glazing applications.
Can multiple panels operate together?
Yes. Panels can operate individually or in coordinated zones.
Can HUEE be automated?
Yes. HUEE can coordinate mode changes with programmed schedules or supported BMS inputs.
What happens if power is lost?
HUEE defaults to a tinted-frost state, maintaining privacy and solar protection.
