Vistamatic® Privacy Vision Panels
Vistamatic® privacy vision panels are mechanically operated, triple-glazed units that shift from clear observation to an obscured view with one turn of the handle. No electricity or wiring is required.
Key Benefits
Privacy Control Built for Demanding Openings
Secure Observation
Open visibility when supervision is needed
No Power or Wiring
Manual operation without electrical coordination
Sealed for Hygiene
Internal components remain protected inside the glass
Proven Durability
Tested beyond 300,000 cycles with a lifetime warranty
How Vistamatic® Privacy Vision Panels Work
Vistamatic® panels operate with no external wires or components for virtually silent, manual operation
Open
Alternating lines align to provide a clear view.
Private
Turn the handle to offset the lines and obscure the view.
Panel Configurations
Which Vistamatic® Panel Fits the Opening?
VISTA-Max
The standard choice for doors and walls, with 1-inch horizontal bands and a large viewing area
Maximum size: 40 x 40 in. or 11 sq. ft.
Operation: Single-sided or dual-sided

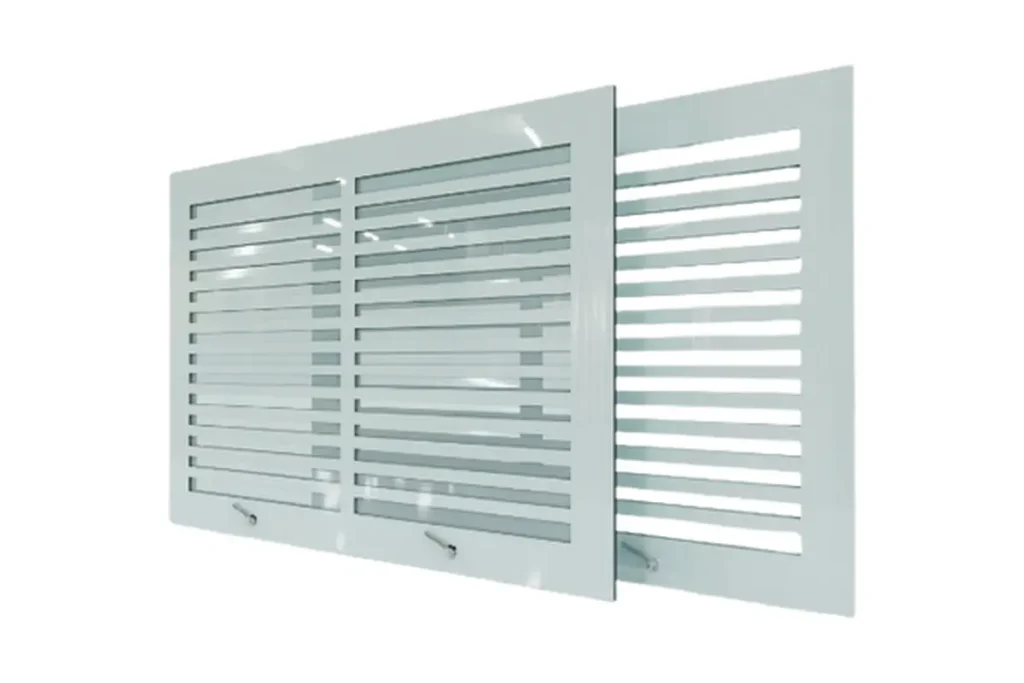

VISTA-SuperMax
Two independently operated panels for openings larger than standard VISTA-Max sizes.
Maximum size: 80 x 40 in. or 22 sq. ft.
Operation: Single-sided or dual-sided
VISTA-Max-XL
A long, narrow configuration that combines two vertical panel areas into one streamlined unit.
Maximum size: 40 x 80 in. or 22 sq. ft.
Operation: Single-sided or dual-sided

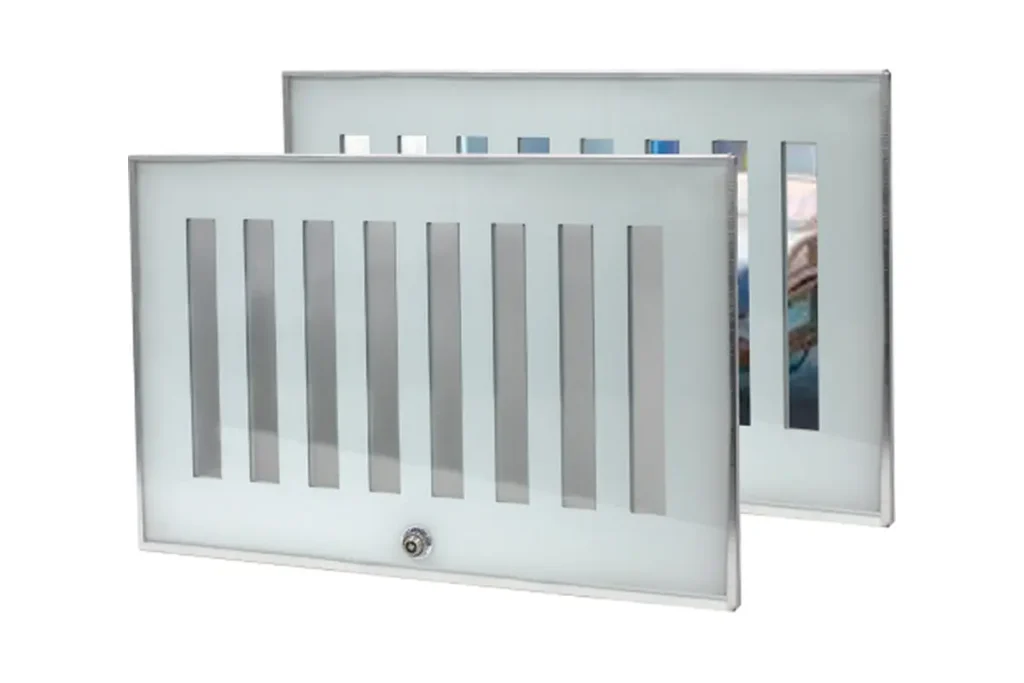

VISTA-Slide
A continuos panel with 1-inch vertical bands that move side to side for larger openings.
Maximum size: 80 x 48 in. or 26 sq. ft.
Operation: Single-sided or dual-sided
VISTA-Vision
The largest Vistamatic® panel and the first configuration designed for exterior use, operated by a sliding magnetic controller.
Maximum size: 70 x 55 in. or 26 sq. ft.
Operation: Single-sided magnetic control

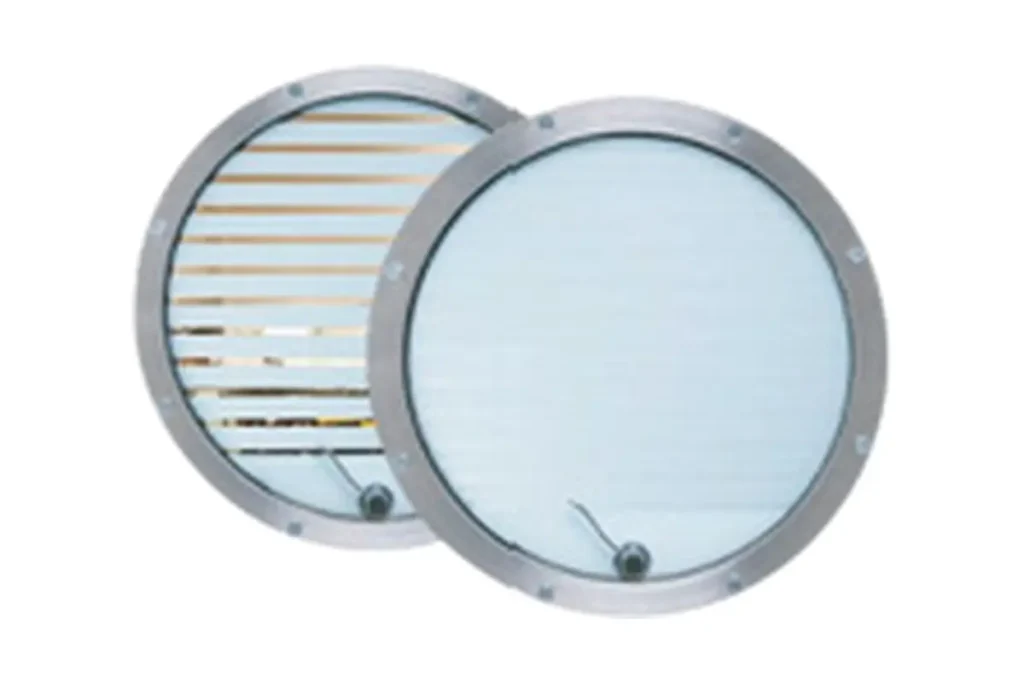

VISTA-Port
A circular privacy panel for doors and walls where a conventional rectangle is not the right fit.
Maximum size: 15 3/4 in. diameter x 13/16 in. thick
Operation: Single-sided or dual-sided
Specialty Options
VISTA-Blackout
Blocks 97-98% of light when closed while retaining clear visibility when open.

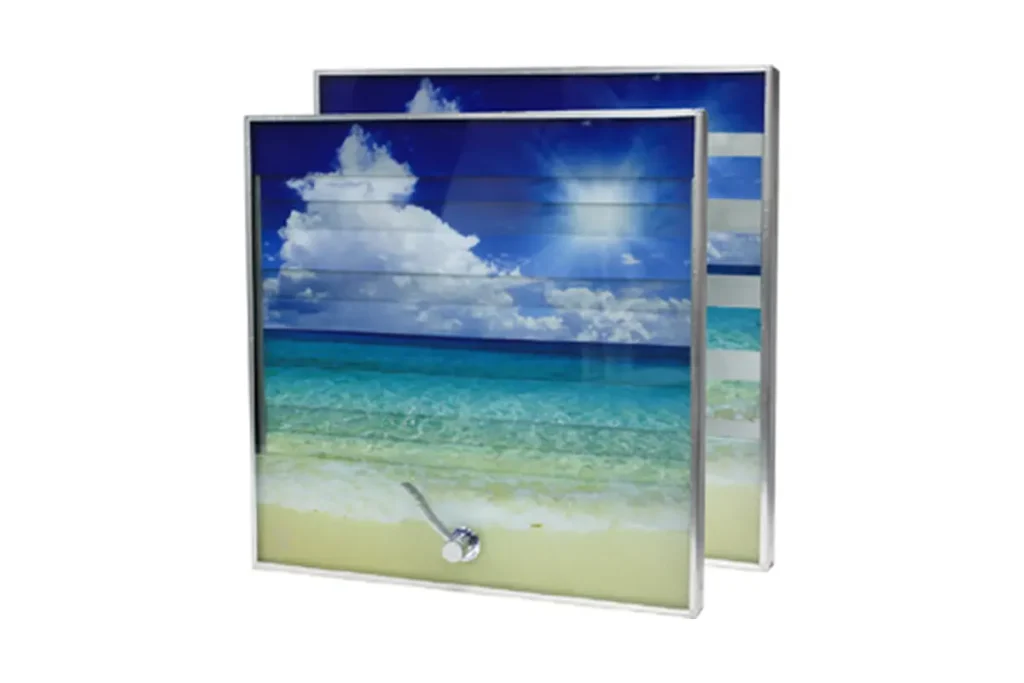

VISTA-Art
Adds custom graphics, patterns, logos, or design elements to the privacy panel.

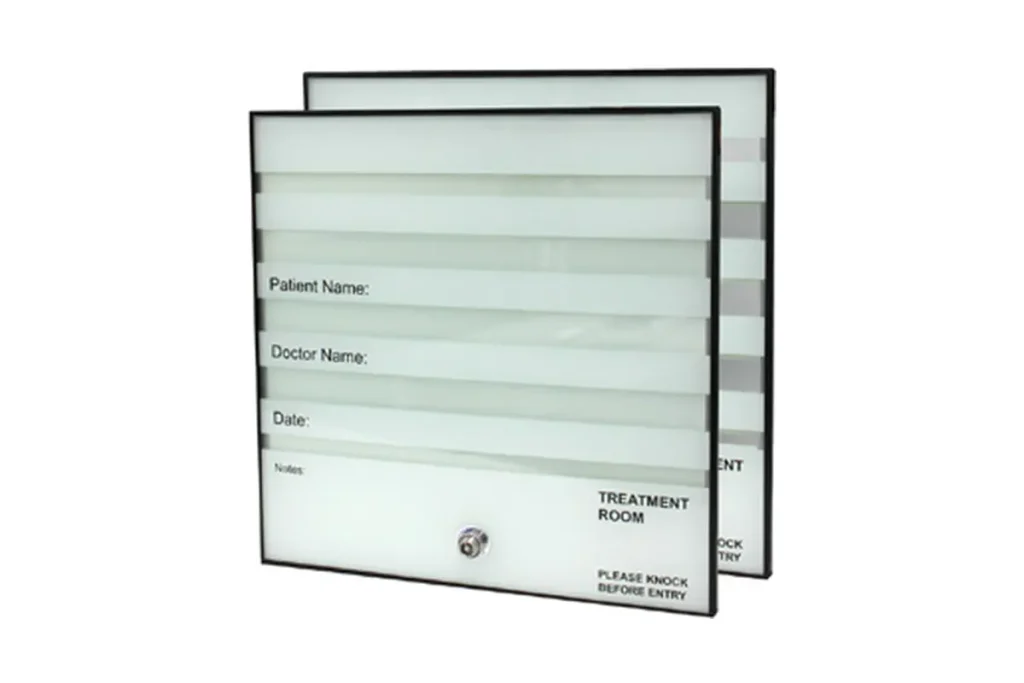

VISTA-Note
Combines VISTA-Max privacy with a dry-erase writing surface.
Controls and Hardware
Choose the Right Level of Access & Control
Standard, Slimline, and Large Levers
Three lever sizes for familiar manual operation
Ligature-Free Knob
A reduced-ligature option for behavioral health and sensitive environments
Key Locking
Restricts operation to authorized personnel
Handle styles may be mixed and matched. Single- or dual-sided operation, and antimicrobial coatings available.

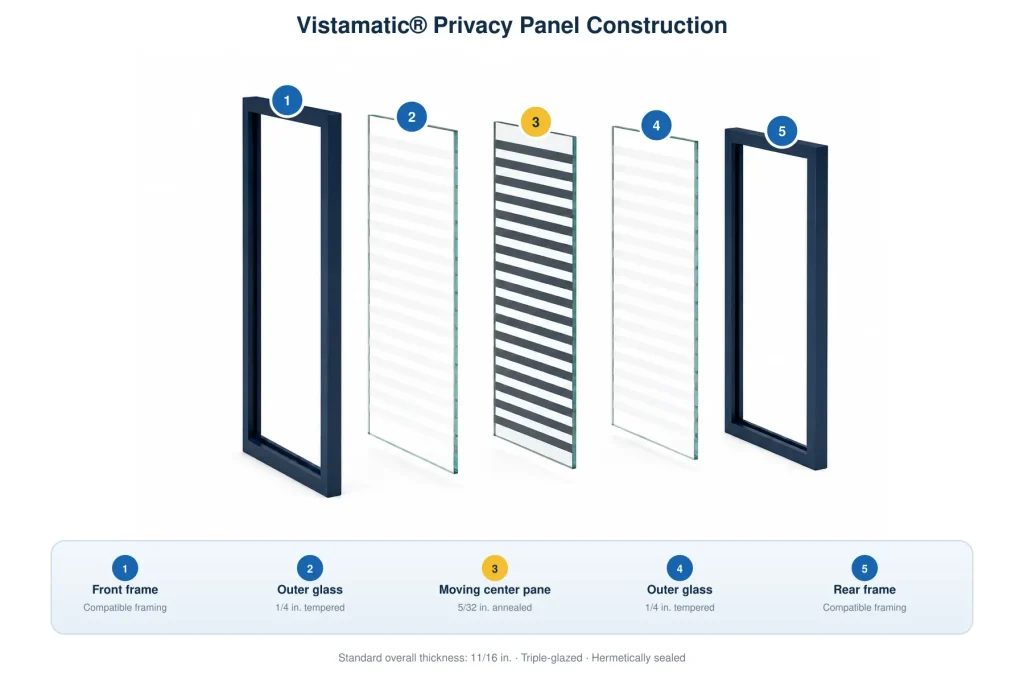

Glass Construction
Triple-Glazed and Hermetically Sealed
Standard Construction
Vistamatic® uses two outer sheets of 1/4-inch tempered glass with a moving 5/32-inch center pane. The standard sealed assembly has an overall thickness of 11/16 inch.
Glazing Options
- Tempered
- Laminated
- Fire-rated
- Laser polymer
- Polycarbonate
- Bullet-resistant
- Lead, safety or non-safety
- Low-E
Glazing availability and overall thickness vary by panel configuration and project requirements.
Applications
Observation and Privacy Across More Environments

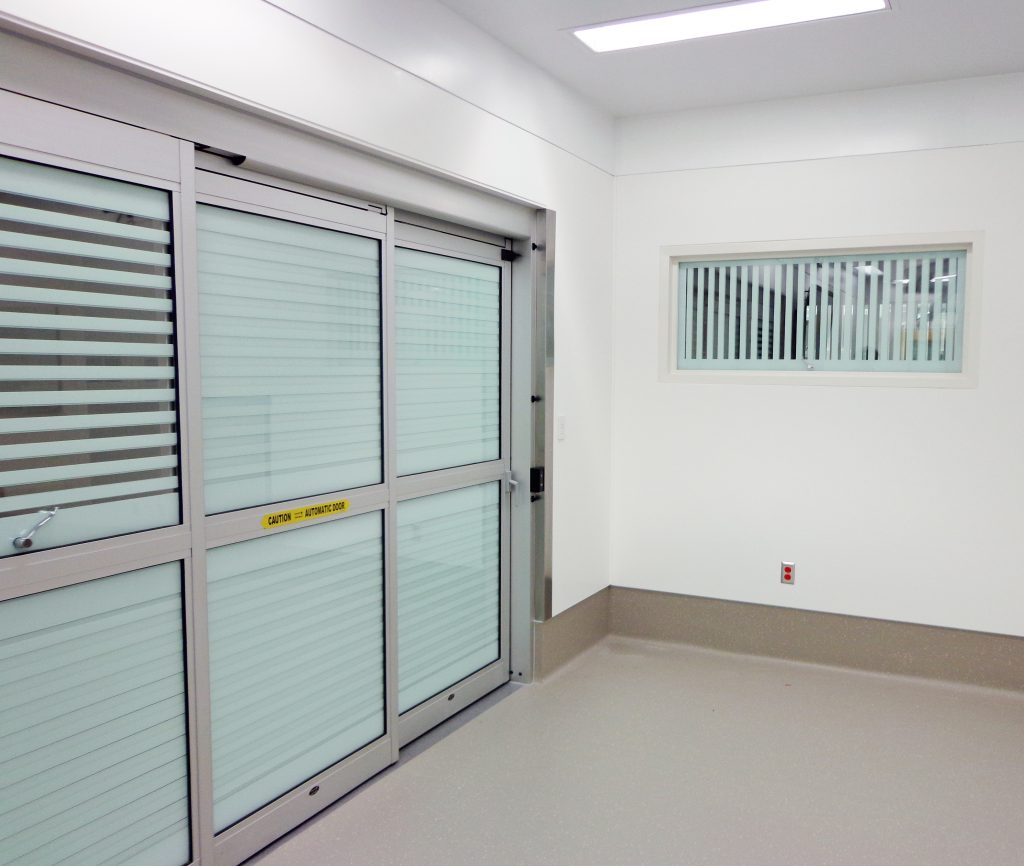

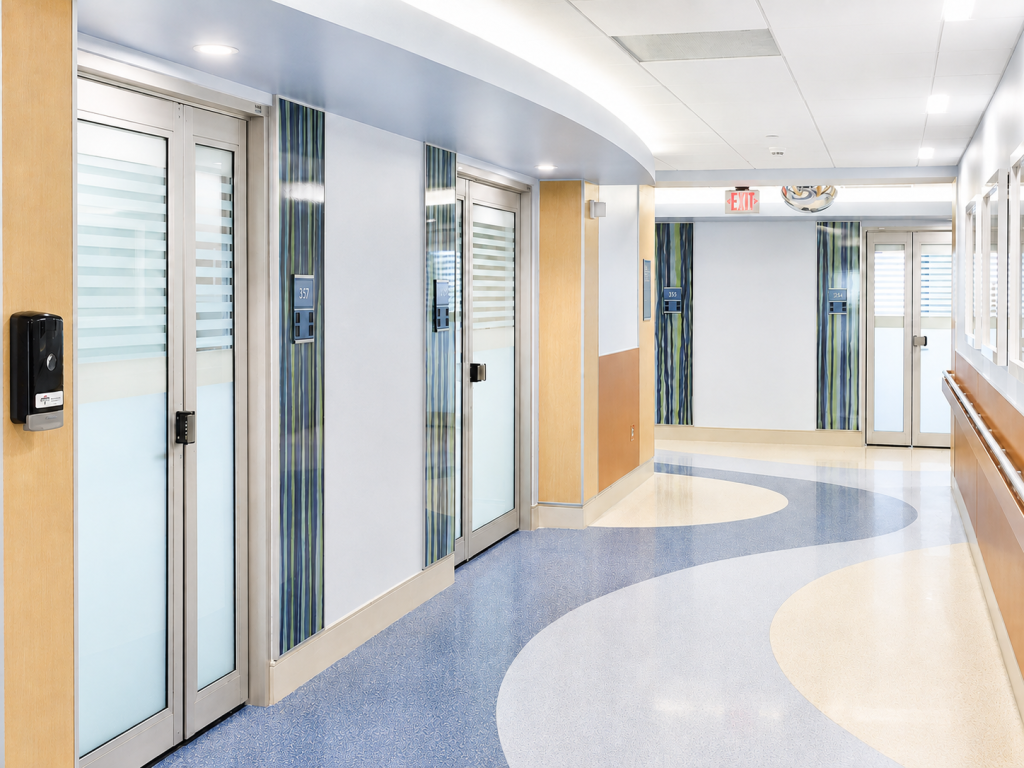

Healthcare & Behavioral Health

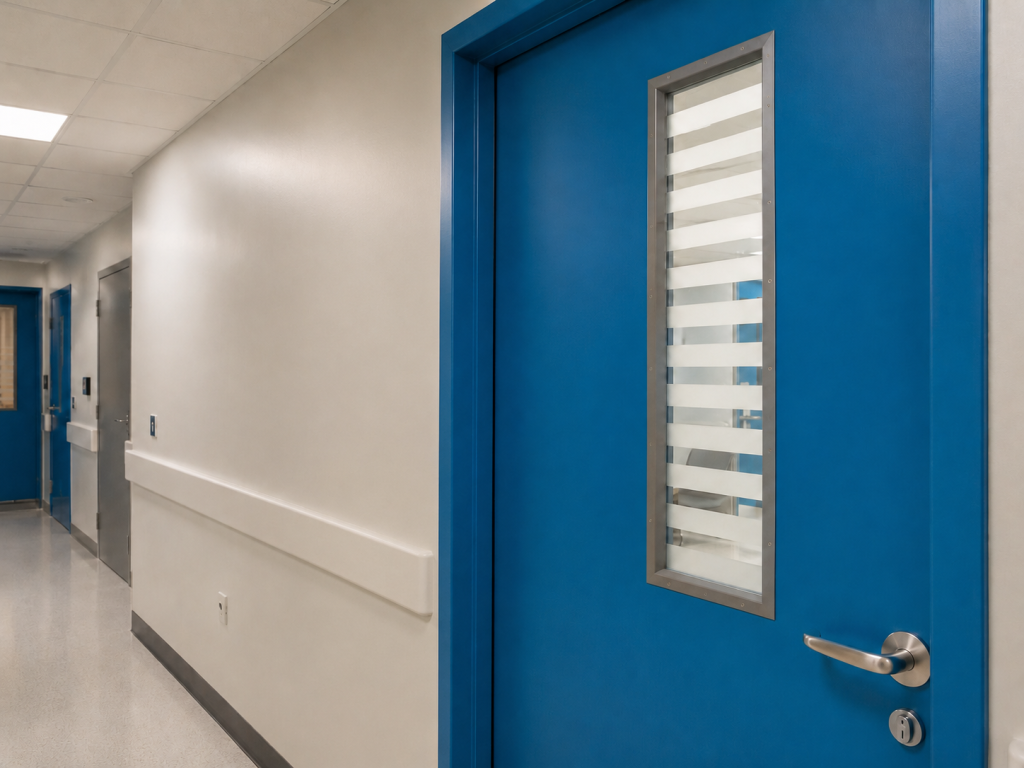

Education

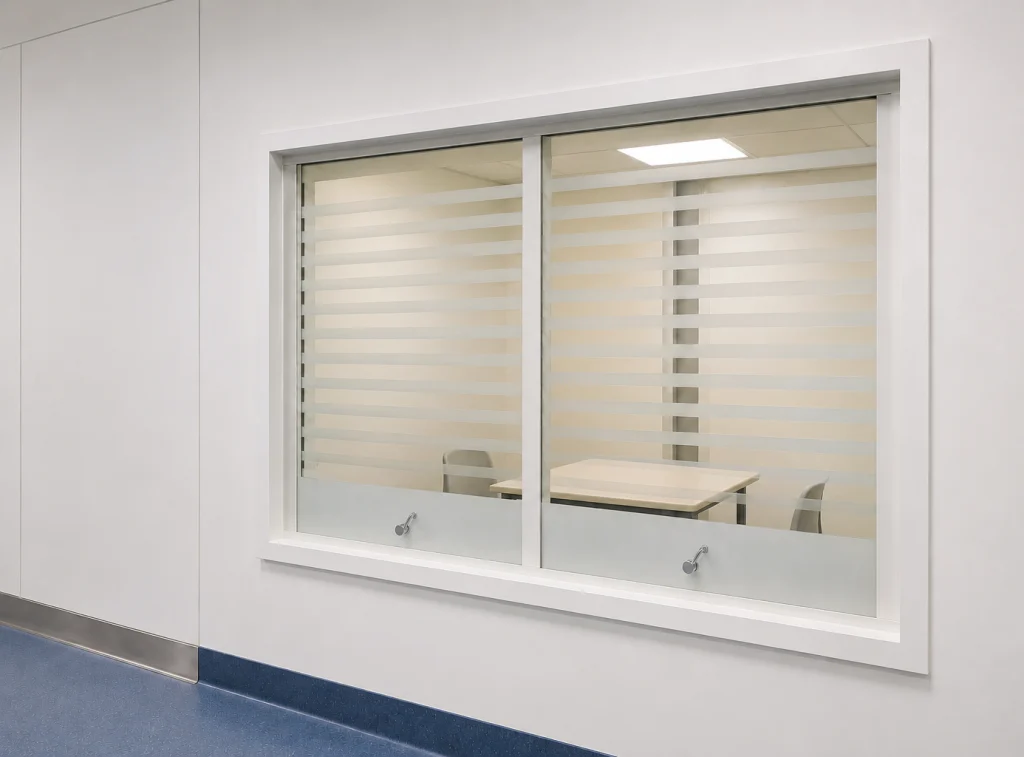

Correctional & High-Security

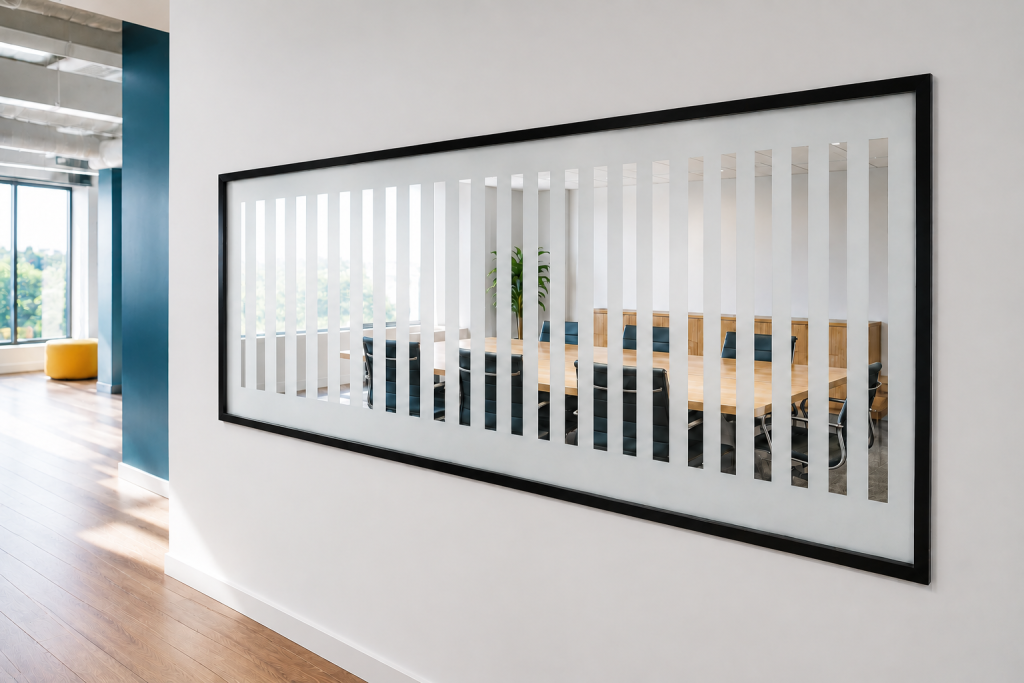

Commercial
Match the Panel to the Opening
PGS designs, engineers, and assembles Vistamatic® panels in the USA. We can help your team compare configurations, panel sizes, glazing requirements, frame conditions, handle options, and specialty features.
Vistamatic® Product Resources
Product Data Sheet - PDF
Panel configurations, sizes, handles, glazing options, and product details.
Three-Part Specification - DOCX
Editable product specification language for project documentation.
Installation & Maintenance Guide - PDF
Handling, opening preparation, frame installation, cleaning, and maintenance requirements.
Product Warranty- PDF
Coverage periods, eligibility, exclusions, and claim requirements.
Vistamatic® in Completed Spaces
- Project name
- Location
- Application
- Why Vistamatic® was selected
- Link to the full project
Vistamatic® Privacy Panels FAQs
What is a Vistamatic® privacy vision panel?
Vistamatic® is a manually operated, triple-glazed vision panel that changes between clear observation and visual privacy by shifting a patterned center pane.
Does Vistamatic® require electricity?
No. Standard Vistamatic® panels are mechanically operated and require no electrical power or wiring.
Can Vistamatic® be used in both doors and walls?
Yes. Vistamatic® panels can be incorporated into compatible doors, walls, and interior partitions. VISTA-Vision is also designed for exterior use.
Are ligature-resistant controls available?
Yes. A ligature-free knob is available for behavioral health and other sensitive environments.
Are fire-rated Vistamatic® panels available?
Yes. Fire-rated glass and panel configurations are available. The required rating, door or wall assembly, glass make-up, and installation details must be confirmed for the project.
What is the largest Vistamatic® panel?
Maximum dimensions depend on the configuration. VISTA-Slide is available up to 80 x 48 inches, while VISTA-Vision is available up to 70 x 55 inches and is designed for exterior use.
Does Vistamatic® provide blackout?
Options include tempered, laminated, fire-rated, laser polymer, polycarbonate, bullet-resistant, lead, and Low-E glazing.
What glazing option are available?
Clarity™ can be configured with certain fire-rated glazing products. Contact PGS to confirm compatibility, ratings, sizes, and construction requirements for the project.
How durable is the operating mechanism?
Vistamatic® panels have been independently tested beyond 300,000 operating cycles and are backed by a lifetime warranty.
Bring the Right Privacy Solution Into Your Project
Tell us about your application, glazing requirements, and project timeline. Our team can help you evaluate products, configurations, and next steps.
